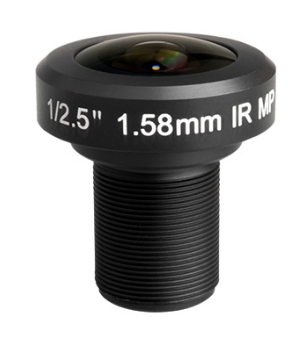

Panoramic Lens 1/3 image thermal ccd sensor 180 degree fish eye lens 1.3MegaPixel focus 1.58mm F2.0 fixed iris aperture

Name: Panoramic Lens 13 image thermal ccd sensor 180 degree fish eye lens 13MegaPixel focus 158mm F20 fixed iris aperture
Brand: Octavia
Price: 1 USD

Brand Name : Octavia

Model Number : MR-3197C-015828

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs/month

Delivery Time : 5-16 days after the order is confirmed

Packaging Details : Standard Packing

Image Circle (mm) : 4.1

Focal Length(mm) : 1.58mm

F No. : 2.8

DFOV @ Image Circle : 180°

Back Focal Length (mm) : 5.65

Contact Now

Panoramic Lens 1/3 image thermal ccd sensor 180 degree fish eye lens 1.3MegaPixel focus 1.58mm F2.0 fixed iris aperture

Image Circle (mm)	4.1
Focal Length(mm)	1.58mm
F-theta Distortion	-18.2%
Aperture Ratio	2.8
DFOV @ Image Circle	180°
Back Focal Length (mm)	5.65
Dimensions (Φ×L)mm	20x24.7
Mount	M12 x 0.5

Panoramic Lens 1/3 image thermal ccd sensor 180 degree fish eye lens 1.3MegaPixel focus 1.58mm F2.0 fixed iris aperture
